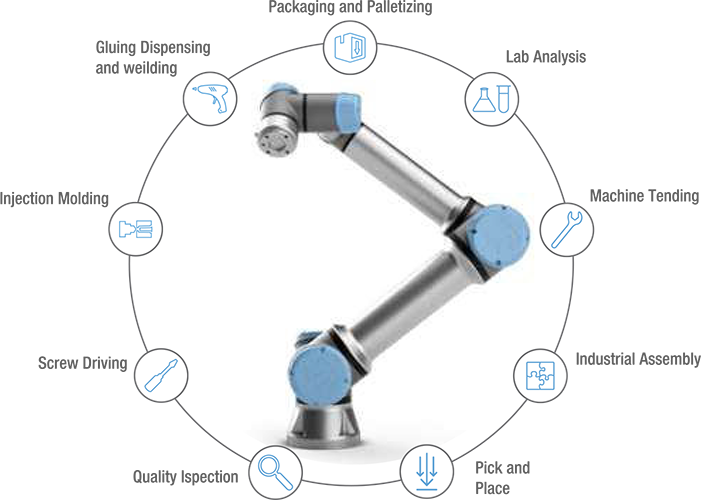

Collaborative Robot

Features

  • Easy Programming
  • Fast Payback
  • Flexible
  • Safe & Collaborative
  • Fast Set-Up
Performance UR3e UR5e UR10e UR16e UR20e
Power Consumption Approx 100W Approx 200W Approx 350W Approx 585W Approx 585W
Certification EN1S0 13849-1 EN1S0 13849-1 EN1S0 13849-1 EN1S0 13849-1 EN1S0 13849-1
Amb. Temp. Range 0-50 DegreeC* 0-50 DegreeC* 0-50 DegreeC* 0-50 DegreeC* 0-50 DegreeC*
Payload 3kg/ 6.6 lbs 5kg/ 11 lbs 10kg/ 22 lbs 16kg/ 35.3 lbs 20Kg/ 44.09 lbs
Reach 500mm / 19.7 in 850mm / 33.5 in 1300mm / 19.7 in 900mm / 35.4 in 1750mm
Degree of Freedom 6 rotating joints DOF 6 rotating joints DOF 6 rotating joints DOF 6 rotating joints DOF 6 rotating joints DOF
IP Classification IP54 IP54 IP54 IP54 IP54
Robot Mounting Any Orientation Any Orientation Any Orientation Any Orientation Any Orientation
Cable Length Robot Arm 6m/236 in 6m/236 in 6m/236 in 6m/236 in 6m/236 in
Weight Including Cable 11.2kg/24.7 Ibs 20.6kg/45.4 Ibs 33.5kg/73.9 Ibs 33.1kg/73 lbs 64kg/141.09 lbs
